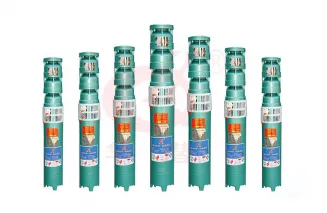

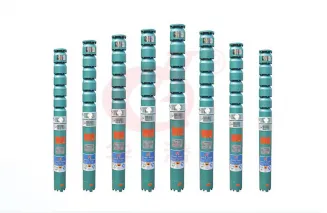

Submersible pump 250 series

Pump device: a device composed of pump head, motor, water head, water pipe, waterproof cable, pump seat, control cabinet and related components.

Inquire Now Next Product

Product Description

Pump device: a device composed of pump head, motor, water head, water pipe, waterproof cable, pump seat, control cabinet and related components.

Type:

1. The pump is vertical, with a diversion shell or impeller, routine or mixed flow impeller type.

2. The pump and the submersible motor are directly connected or coaxial.

3. From the drive end, the shaft is generally rotated clockwise.

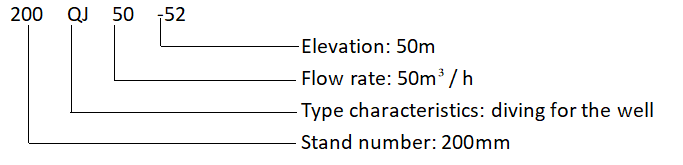

Model: submersible pump for well

Instance:

Submersible pump 150 series

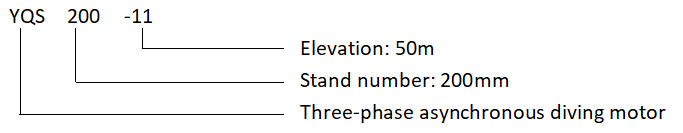

Model: submersible motor:

Instance:

Submersible pump 150 series

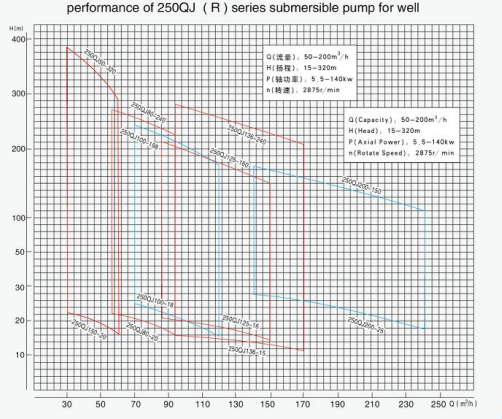

Basic Parameters:

No.	Specifications and models	Outlet diameter mm	Rated flow m³/h	Rated lift m	Speed r/min	Rated voltage V	Rated power kW	Rated current A	Maximum radial dimension of electric pump underground mm
1	250QJ32-100	80	32	100	2875	380	15	33.69	236
2	250QJ32-120			120			18.5	41.05
3	250QJ32-140			140			22	47.37
4	250QJ32-160			160			25	53.51
5	250QJ32-180			180			30	63.84
6	250QJ32-200			200			37	77.82
7	250QJ32-220			220			45	93.53
8	250QJ32-240			240			45	93.53
9	250QJ32-260			260			55	114.32
10	250QJ32-280			280			55	114.32
11	250QJ32-300			300			55	114.32
12	250QJ32-320			320			55	114.32
13	250QJ32-340			340			63	129.44
14	250QJ32-360			360			63	129.44
15	250QJ32-380			380			75	154.10
16	250QJ32-400			400			75	154.10
17	250QJ32-420			420			75	154.10
18	250QJ50-80	80	50	80	2875	380	18.5	41.05	236
19	250QJ50-100			100			22	47.37
20	250QJ50-120			120			30	63.84
21	250QJ50-140			140			30	63.84
22	250QJ50-160			160			37	77.82
23	250QJ50-200			200			45	93.53
24	250QJ50-240			240			55	114.32
25	250QJ50-280			280			63	129.44
26	250QJ50-320			320			75	154.10
27	250QJ50-360			360			90	182.77
28	250QJ50-390			390			90	182.77
29	250QJ50-420			420			100	201.91
30	250QJ50-450			450			100	201.91
31	250QJ50-480			480			110	222.10
32	250QJ50-510			510			125	250.96
33	250QJ50-540			540			125	250.96
34	250QJ50-570			570			140	277.84
35	250QJ50-600			600			140	277.84
36	250QJ63-40	80	63	40	2875	380	11	25.48	236
37	250QJ63-60			60			18.5	41.05
38	250QJ63-80			80			22	47.37
39	250QJ63-100			100			30	63.84
40	250QJ63-120			120			37	77.82
41	250QJ63-160			160			45	93.53
42	250QJ63-200			200			55	114.32
43	250QJ63-220			220			63	129.44
44	250QJ63-260			260			75	154.10
45	250QJ63-300			300			90	182.77
46	250QJ63-360			360			100	201.91
47	250QJ63-400			400			110	222.10
48	250QJ80-60	100	80	60	2875	380	22	47.37	236
49	250QJ80-80			80			30	63.84
50	250QJ80-100			100			37	77.82
51	250QJ80-120			120			45	93.53
52	250QJ80-160			160			55	114.32
53	250QJ80-180			180			63	129.44
54	250QJ80-200			200			75	154.10
55	250QJ80-240			240			90	182.77
56	250QJ80-270			270			100	201.91	236
57	250QJ80-300			300			110	222.10
58	250QJ80-330			330			125	250.96
59	250QJ80-360			360			125	250.96
60	250QJ80-390			390			140	277.84
61	250QJ100-18	100	100	18	2875	380	7.5	18.04	236
62	250QJ100-36			36			15	33.69
63	250QJ100-54			54			25	53.51
64	250QJ100-72			72			30	63.84
65	250QJ100-108			108			45	93.53
66	250QJ100-126			126			55	114.32
67	250QJ100-144			144			63	129.44
68	250QJ100-162			162			75	154.10
69	250QJ100-198			198			90	182.77
70	250QJ100-216			216			100	201.91
71	250QJ100-240			240			110	222.10
72	250QJ100-270			270			125	250.96
73	250QJ100-300			300			140	277.84
74	250QJ125-16	125	125	16	2875	380	9.2	21.72	236
75	250QJ125-32			32			18.5	41.05
76	250QJ125-48			48			25	53.51
77	250QJ125-64			64			37	77.82
78	250QJ125-80			80			45	93.53
79	250QJ125-96			96			55	114.32
80	250QJ125-112			112			63	129.44
81	250QJ125-128			128			75	154.10
82	250QJ125-160			160			90	182.77
83	250QJ125-176			176			100	201.91
84	250QJ125-192			192			110	222.10
85	250QJ140-15	125	140	15	2875	380	9.2	21.72	236
86	250QJ140-30			30			18.5	41.05
87	250QJ140-45			45			30	63.84
88	250QJ140-60			60			37	77.82
89	250QJ140-75			75			45	93.53
90	250QJ140-90			90			55	114.32
91	250QJ140-105			105			63	129.44
92	250QJ140-120			120			75	154.10
93	250QJ140-150			150			90	182.77
94	250QJ140-165			165			100	201.91
95	250QJ140-180			180			110	222.10
96	250QJ160-40	125	160	40	2875	380	30	63.84	236
97	250QJ160-60			60			45	93.53
98	250QJ160-80			80			63	129.44
99	250QJ160-100			100			75	154.10
100	250QJ160-120			120			90	182.77
101	250QJ160-140			140			110	222.10
102	250QJ160-160			160			125	250.96
103	250QJ160-180			180			125	250.96
104	250QJ160-200			200			140	277.84
105	250QJ200-20	150	200	20	2875	380	18.5	41.05	236
106	250QJ200-40			40			37	77.82
107	250QJ200-60			60			55	114.32
108	250QJ200-80			80			75	154.10
109	250QJ200-100			100			90	182.77
110	250QJ200-120			120			100	201.91
111	250QJ200-140			140			125	250.96
112	250QJ200-160			160			140	277.84
113	250QJ200-180			180			160	315.74
114	250QJ200-200			200			185	365.07

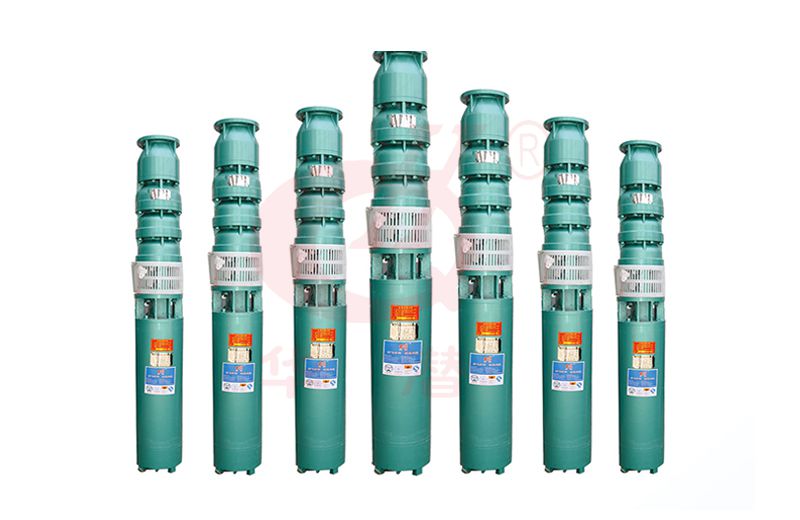

Submersible pump 250 series
