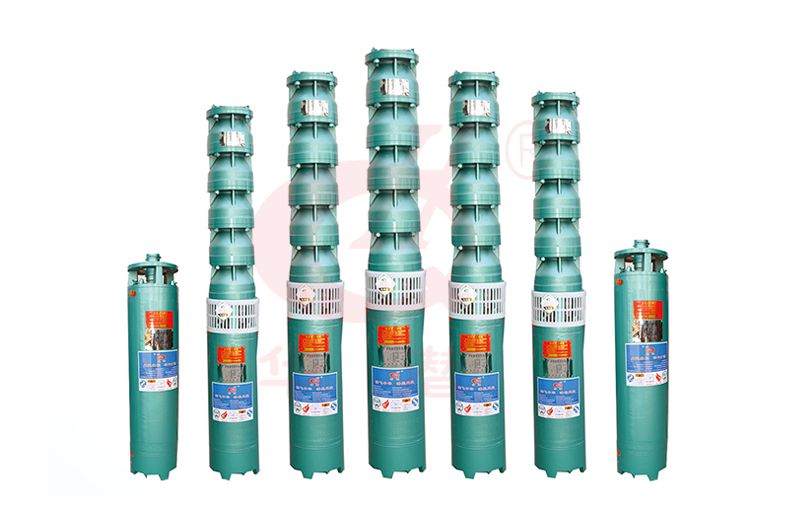

Submersible pump 200 series

Pump device: a device composed of pump head, motor, water head, water pipe, waterproof cable, pump seat, control cabinet and related components.

Inquire Now Next Product

Product Description

Pump device: a device composed of pump head, motor, water head, water pipe, waterproof cable, pump seat, control cabinet and related components.

Type:

1. The pump is vertical, with a diversion shell or impeller, routine or mixed flow impeller type.

2. The pump and the submersible motor are directly connected or coaxial.

3. From the drive end, the shaft is generally rotated clockwise.

Model: submersible pump for well

Instance:

Submersible pump 150 series

Model: submersible motor:

Instance:

Submersible pump 150 series

Basic Parameters:

No.	Specifications and models	Outlet diameter mm	Rated flow m³/h	Rated lift m	Speed r/min	Rated voltage V	Rated power kW	Rated current A	Maximum radial dimension of electric pump underground mm
1	200QJ10-36	50	10	36	2850	380	3	7.69	190
2	200QJ10-54			54			4	9.99
3	200QJ10-72			72			5.5	13.48
4	200QJ10-90			90			7.5	18.04
5	200QJ10-108			108			7.5	18.04
6	200QJ10-126			126			9.2	21.84
7	200QJ10-144			144			9.2	21.84
8	200QJ10-162			162			11	25.64
9	200QJ10-180			180			11	25.64
10	200QJ10-198			198			13	30.11
11	200QJ10-216			216			13	30.11
12	200QJ10-234			234			15	34.31
13	200QJ10-252			252			18.5	41.30
14	200QJ10-270			270			18.5	41.30
15	200QJ10-288			288			18.5	41.30
16	200QJ10-306			306			18.5	41.30
17	200QJ10-324			324			22	48.52
18	200QJ10-360			360			22	48.52
19	200QJ10-396			396			25	54.48
20	200QJ10-432			432			30	65.38
21	200QJ10-450			450			30	65.38
22	200QJ10-486			486			30	65.38
23	200QJ10-504			504			37	78.74
24	200QJ10-540			540			37	78.74
25	200QJ10-576			576			37	78.74
26	200QJ10-612			612			37	78.74
27	200QJ10-648			648			45	95.76
28	200QJ10-666			666			45	95.76
29	200QJ10-702			702			45	95.76
30	200QJ10-720			720			45	95.76
31	200QJ10-756			756			55	116.36
32	200QJ10-792			792			55	116.36
33	200QJ10-810			810			55	116.36
34	200QJ15-30	50	15	30	2850	380	3	7.69	190
35	200QJ15-45			45			4	9.99
36	200QJ15-60			60			5.5	13.48
37	200QJ15-75			75			7.5	18.04
38	200QJ15-90			90			9.2	21.84
39	200QJ15-105			105			9.2	21.84
40	200QJ15-120			120			11	25.64
41	200QJ15-135			135			13	30.11
42	200QJ15-150			150			13	30.11
43	200QJ15-165			165			15	34.31
44	200QJ15-180			180			15	34.31
45	200QJ15-195			195			18.5	41.30
46	200QJ15-210			210			18.5	41.30
47	200QJ15-240			240			22	48.52
48	200QJ15-270			270			25	54.48
49	200QJ15-300			300			25	54.48
50	200QJ15-330			330			30	65.38
51	200QJ15-360			360			30	65.38
52	200QJ15-390			390			37	78.74
53	200QJ15-420			420			37	78.74
54	200QJ15-450			450			45	95.76
55	200QJ15-480			480			45	95.76
56	200QJ15-510			510			45	95.76
57	200QJ15-540			540			45	95.76
58	200QJ15-570			570			55	116.36
59	200QJ15-600			600			55	116.36
60	200QJ15-630			630			55	116.36
61	200QJ15-660			660			55	116.36
62	200QJ15-690			690			63	133.28
63	200QJ15-720			720			63	133.28
64	200QJ15-750			750			63	133.28
65	200QJ15-780			780			75	156.80
66	200QJ15-810			810			75	156.80
67	200QJ20-40	50	20	40	2850	380	4	9.99	190
68	200QJ20-54			54			5.5	13.48
69	200QJ20-81			81			7.5	18.04
70	200QJ20-105			105			11	25.64
71	200QJ20-120			120			13	30.11
72	200QJ20-135			135			15	34.31
73	200QJ20-150			150			18.5	41.30
74	200QJ20-180			180			18.5	41.30
75	200QJ20-210			210			22	48.52
76	200QJ20-230			230			25	54.48
77	200QJ20-260			260			30	65.38
78	200QJ20-290			290			37	78.74
79	200QJ20-306			306			37	78.74
80	200QJ20-342			342			37	78.74
81	200QJ20-360			360			37	78.74
82	200QJ20-396			396			45	95.76
83	200QJ20-432			432			45	95.76
84	200QJ20-450			450			45	95.76
85	200QJ20-486			486			55	116.36
86	200QJ20-504			504			55	116.36
87	200QJ20-540			540			55	116.36
88	200QJ20-558			558			63	133.28
89	200QJ20-576			576			63	133.28
90	200QJ20-612			612			63	133.28
91	200QJ20-630			630			63	133.28
92	200QJ20-666			666			75	156.80
93	200QJ20-702			702			75	156.80
94	200QJ20-720			720			75	156.80
95	200QJ20-756			756			90	187.07
96	200QJ20-792			792			90	187.07
97	200QJ20-810			810			90	187.07
98	200QJ25-28	50	25	28	2850	380	4	9.99	190
99	200QJ25-42			42			5.5	13.48
100	200QJ25-56			56			7.5	18.04
101	200QJ25-70			70			9.2	21.84
102	200QJ25-98			98			11	25.64
103	200QJ25-112			112			13	30.11
104	200QJ25-126			126			15	34.31
105	200QJ25-154			154			18.5	41.30
106	200QJ25-182			182			22	48.52
107	200QJ25-210			210			25	54.48
108	200QJ25-252			252			30	65.38
109	200QJ25-308			308			37	78.74
110	200QJ32-26	65	32	26	2850	380	4	9.99	190
111	200QJ32-39			39			5.5	13.48
112	200QJ32-52			52			7.5	18.04
113	200QJ32-65			65			9.2	21.84
114	200QJ32-78			78			11	25.64
115	200QJ32-91			91			13	30.11
116	200QJ32-104			104			15	34.31
117	200QJ32-117			117			18.5	41.30
118	200QJ32-130			130			22	48.52
119	200QJ32-143			143			22	48.52
120	200QJ32-169			169			25	54.48
121	200QJ32-195			195			30	65.38
122	200QJ32-247			247			37	78.74
123	200QJ32-260			260			45	95.76
124	200QJ32-273			273			45	95.76
125	200QJ32-286			286			45	95.76
126	200QJ32-312			312			55	116.36
127	200QJ32-332			332			55	116.36
128	200QJ32-351			351			55	116.36
129	200QJ32-371			371			55	116.36
130	200QJ32-390			390			63	133.28
131	200QJ32-410			410			63	133.28
132	200QJ32-429			429			63	133.28
133	200QJ32-449			449			75	156.80
134	200QJ32-468			468			75	156.80
135	200QJ32-488			488			75	156.80
136	200QJ32-507			507			75	156.80
137	200QJ32-527			527			90	187.07
138	200QJ32-546			546			90	187.07
139	200QJ40-26	80	40	26	2850	380	5.5	13.48	190
140	200QJ40-39			39			7.5	18.04
141	200QJ40-52			52			9.2	21.84
142	200QJ40-65			65			13	30.11
143	200QJ40-78			78			15	34.31
144	200QJ40-91			91			18.5	41.30
145	200QJ40-104			104			18.5	41.30
146	200QJ40-117			117			22	48.52
147	200QJ40-130			130			25	54.48
148	200QJ40-143			143			25	54.48
149	200QJ40-169			169			30	65.38
150	200QJ40-208			208			37	78.74
151	200QJ40-221			221			45	95.76
152	200QJ40-234			234			45	95.76
153	200QJ40-247			247			45	95.76
154	200QJ50-26	80	50	26	2850	380	5.5	13.48	190
155	200QJ50-39			39			7.5	18.04
156	200QJ50-52			52			11	25.64
157	200QJ50-65			65			15	34.31
158	200QJ50-78			78			18.5	41.30
159	200QJ50-91			91			22	48.52
160	200QJ50-104			104			22	48.52
161	200QJ50-117			117			25	54.48
162	200QJ50-130			130			30	65.38
163	200QJ50-143			143			37	78.74
164	200QJ50-156			156			37	78.74
165	200QJ50-169			169			37	78.74
166	200QJ50-182			182			45	95.76
167	200QJ50-195			195			45	95.76
168	200QJ50-208			208			55	116.36
169	200QJ50-221			221			55	116.36
170	200QJ63-24	80	63	24	2850	380	7.5	18.04	190
171	200QJ63-36			36			11	25.64
172	200QJ63-48			48			15	34.31
173	200QJ63-60			60			18.5	41.30
174	200QJ63-72			72			22	48.52
175	200QJ63-84			84			25	54.48
176	200QJ63-96			96			30	65.38
177	200QJ63-108			108			30	65.38
178	200QJ63-120			120			37	78.74
179	200QJ63-144			144			45	95.76
180	200QJ63-156			156			45	95.76
181	200QJ63-168			168			55	116.36
182	200QJ80-22	100	80	22	2850	380	7.5	18.04	190
183	200QJ80-33			33			11	25.64
184	200QJ80-44			44			15	34.31
185	200QJ80-55			55			18.5	41.30
186	200QJ80-66			66			22	48.52
187	200QJ80-77			77			25	54.48
188	200QJ80-88			88			30	65.38
189	200QJ80-99			99			37	78.74
190	200QJ80-121			121			45	95.76
191	200QJ80-132			132			45	95.76
192	200QJ80-143			143			55	116.36
193	200QJ100-18	100	100	18	2850	380	7.5	18.04	190
194	200QJ100-36			36			15	34.31
195	200QJ100-45			45			22	48.52
196	200QJ100-54			54			25	54.48
197	200QJ100-63			63			30	65.38
198	200QJ100-72			72			37	78.74
199	200QJ100-90			90			45	95.76
200	200QJ100-108			108			55	116.36
